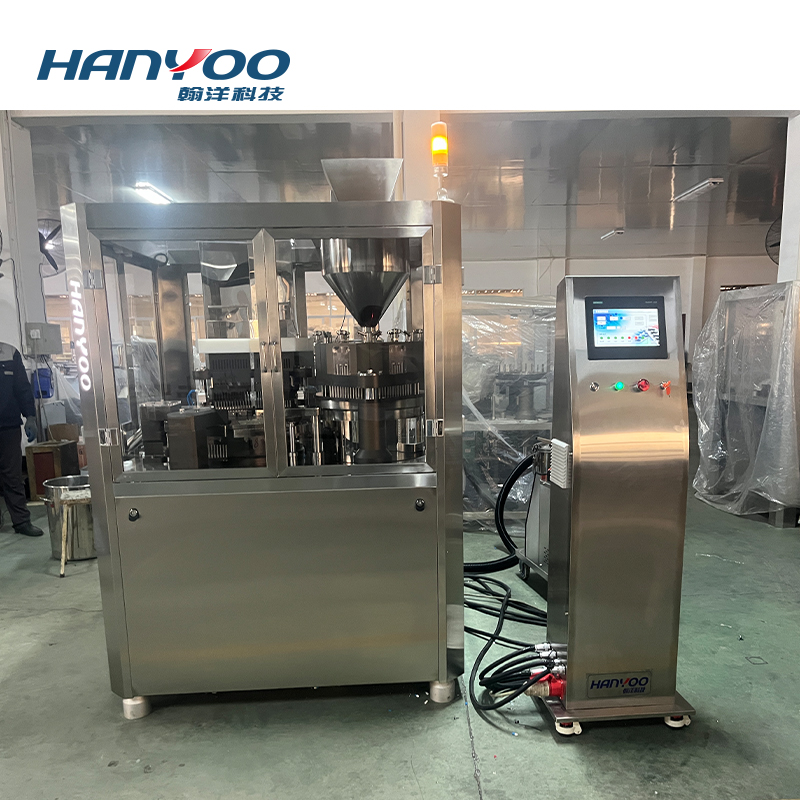

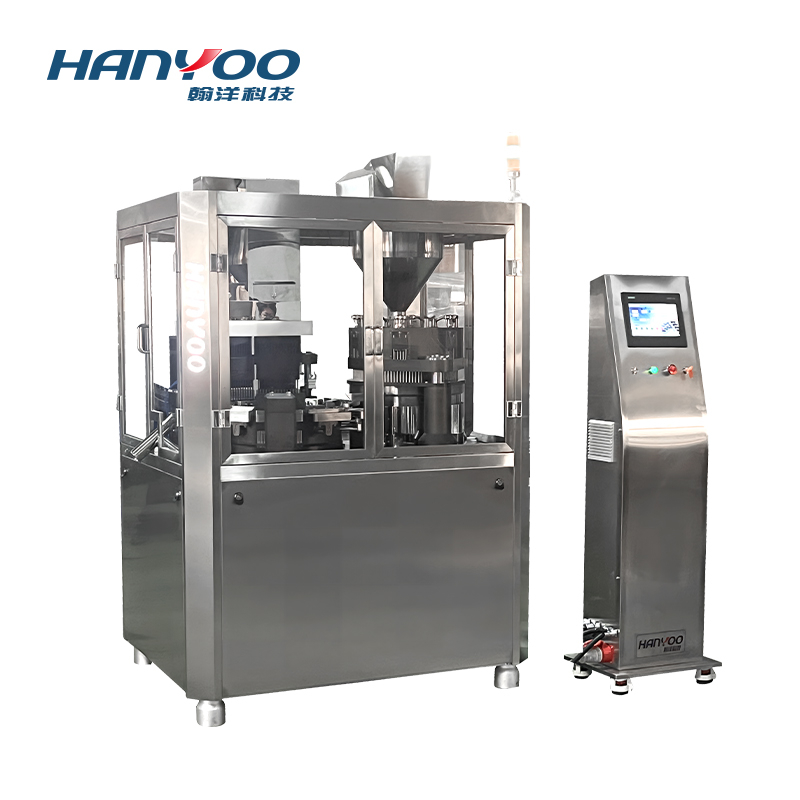

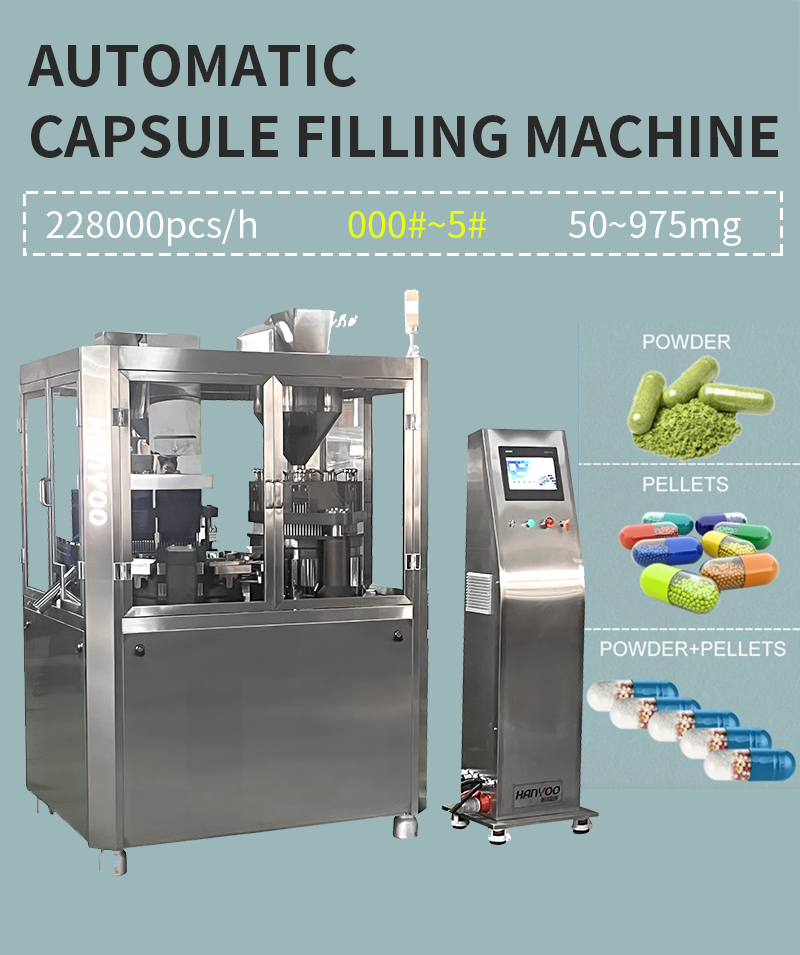

GL-18/27/40/54 High Speed Automatic Capsule Filling Machine
The equipment adopts internal cam transmission, reduce the center of gravity of the equipment, which is more stable running at high speed. It adopts Ferguson transmission, and the vibration is small. The working noise at high speed is less than 75dB. and the dose difference is controlled within 3-5% (depending on the powder).
The rotary part is completely enclosed, and an automatic lubrication system can be added. The work surface is free of oil and avoids cross- contamination with drugs;
There is a special adjustment device between the dose plate and the copper plate. It does not need to be measured with a feeler gauge, and the adjustment is quick and easy.
The equipment adopts the Siemens human-machine interface, PLC programmable controller, HMl display, it can display output per minute, cumulative output, empty capsule and powder powder status, lack of capsule alarm prompt and automatic shutdown when the powder is insufficient, fault diagnosis prompts, etc.
There are pin holes in the equipment mold installation, and the mold calibration is quick and easy.
Adopt double-supply structure, in the fast running state, the capsule is stable and meets GMP requirements.
The machine adopted brush cleaning and vacuum sucking device, the capsule loading rate is over than 99.99%.
| Model | GL-18 | GL-27 | GL-40 | GL-54 |
| Max. Output(pcs/h) | 120,000 | 210,000 | 336,000 | 456,000 |
No.Of Bore | 18 | 27 | 40 | 54 |
| Vacuum(m³/h) | 65 | 130 | 250 | 450 |
| Powder(KW) | 8 | 10.5 | 12 | 14.5 |
| Capsule Size | #000-#5 | |||
| Voltage | Customized | |||
| Weight(KG) | 1800 | 2300 | 3200 | 4000 |
| Dimmension | 1310*1260*2060 | 1450*1370*2060 | 1560*1430*2060 | 1560*1430*2060 |
Jiangsu Hanyoo Pharmatech Co., Ltd.is a high technology enterprise which has strong research, production, sales and after-service team. We are specialized in providing the professional packaging solution and packaging equipment for pharmaceutical, medical instruments, cosmetics and electronics industrials. Our over 20 years pharmaceutical machinery experience can help you more on building your intelligent factory.
Hanyoo factory is located in Nanjing city, which occupied more than 12,000 square meters. The main products are capsule filling machine, tablet press machine, blister packing machines, capsule/tablet counting machine, granulator, coating machine, mixing machine etc. We have over hundred of inventions patented technology, with leading R&D team, with a variety of high-precision processing equipment and quality testing team to provide product quality assurance. The company passed ISO9001:2016quality management certification, the products passed through the EU CE certification. Now, with the efforts of all staff in Hanyoo, our products sold to more than 30 provinces in China and exported to over than 100 countries in the world such as,the United States,Russia,Germany, Spain, Malaysia, Thailand, Brazil and other dozens of countries and regions, and we won good reputation and credibility.
12000 meter workshop
The factory has sufficient stock supply
24-hour technical support and after-sales service
Professional maintenance and provision of various accessories
